Vehicle-mounted Electric Fire Monitor

Vehicle-mounted Electric Fire Monitor

SANJING FIRE vehicle-mounted electric fire monitor, also known as an electric water cannon or a remote-controlled fire monitor, is a type of firefighting equipment that is designed to deliver a high-pressure stream of water or other firefighting agent to extinguish fires.



SANJING FIRE vehicle-mounted electric fire monitor, also known as an electric water cannon or a remote-controlled fire monitor, is a type of firefighting equipment that is designed to deliver a high-pressure stream of water or other firefighting agent to extinguish fires. It is specifically designed to be mounted on a vehicle, such as a fire truck or other emergency response vehicle, to provide a mobile and flexible fire protection solution.

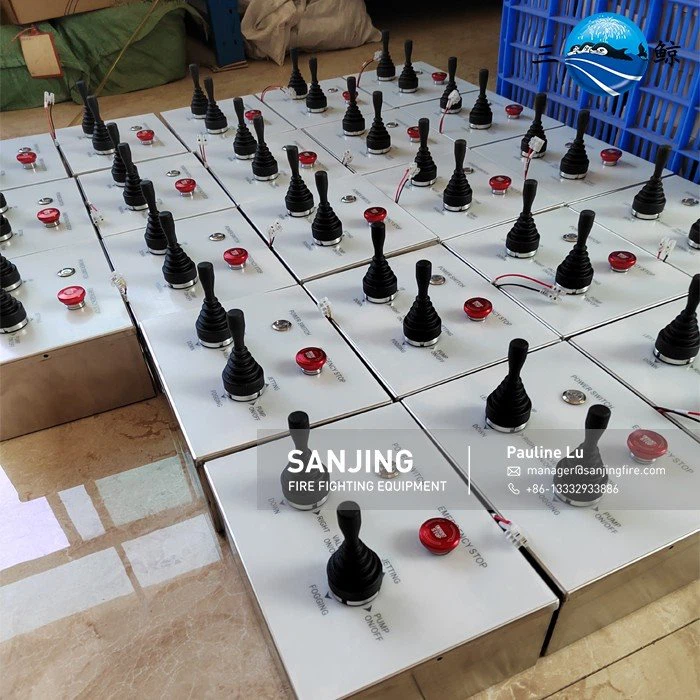

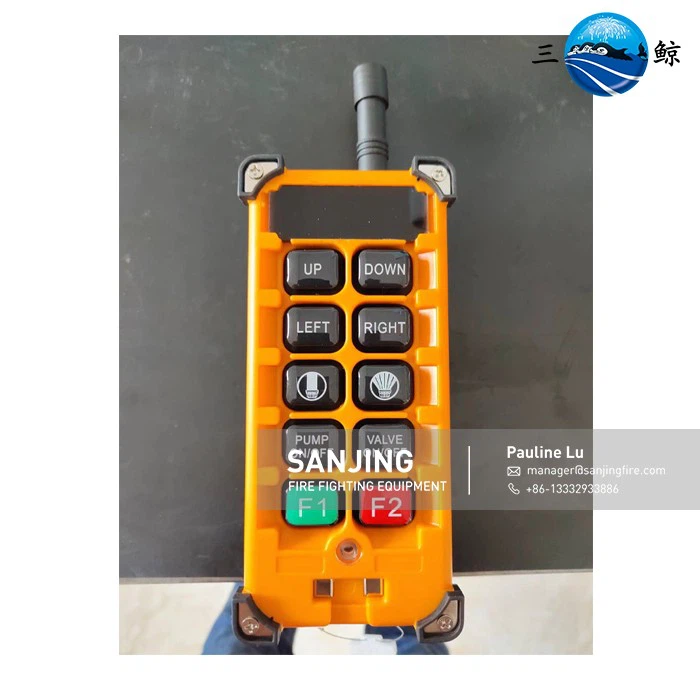

Vehicle-mounted electric fire monitors are typically mounted on the roof or the front bumper of the vehicle and can be operated remotely using a control panel or joystick. They can be programmed to deliver different spray patterns, such as a straight stream or a wide fan pattern, depending on the specific fire situation.



One advantage of vehicle-mounted electric fire monitors is that they allow firefighters to operate the equipment from a safe distance, reducing the risk of injury from heat, flames, and falling debris. They can also be easily maneuvered to reach fires in hard-to-reach areas, such as roofs or upper floors of buildings.



Additionally, vehicle-mounted electric fire monitors can be integrated with other firefighting equipment, such as foam systems or sprinkler systems, to provide a comprehensive fire protection solution.



It is important to note that vehicle-mounted electric fire monitors require proper installation, maintenance, and training to ensure that they are used safely and effectively. Users should also be aware of the potential hazards associated with operating vehicle-mounted electric fire monitors, such as electrical shock and exposure to high-pressure water streams.



Features



Technical parameter

Model

PS8/20W

PS8/30W

PS8/40W

PS10/50W

Flow rate (L/s)

20

30

40

50

Rated working pressure(Mpa)

0.8

0.8

0.8

1.0

Working pressure range(Mpa)

0.5-1.6

Range (m)

55

60

65

70

Angle of horizontal rotation(º)

360

Angle of vertical rotation(º)

-60—+70

Material

Aluminum Alloy

Installation mode

Seating arrangement

Connecting flange

DN100

Service Environment

-10℃—+50℃



Vehicle-mounted electric fire monitor 1001

Vehicle-mounted electric fire monitor 2001



Q&A



Q: Can you create the design for me?

A: Yes, of course, our professional design team is always available here.



Q: What artwork do I need?

A: We would prefer to use illustrator vectors ( ai, cdr. Pdf)If the file is too large to send via email, you could share it to us via WeTransfer, Dropbox or Hightail.



Q: Can I get everything customized here, like label, hang tags, packing etc.?

A: Definitely yes; just kindly advise us your special demands, we’ll get the job done.
